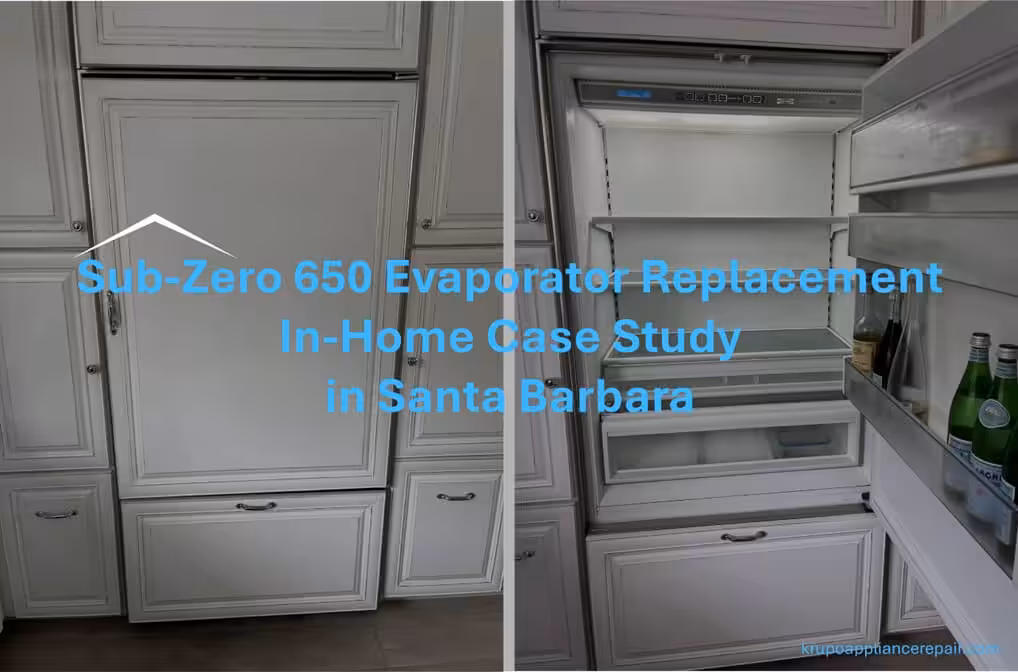

Sub-Zero 650 Evaporator Replacement – In-Home Repair Case Study in Santa Barbara

Introduction

A failing evaporator in a Sub-Zero 650 can lead to temperature fluctuations, frost buildup, and spoiled food. A customer, Mesiree K, living in Santa Barbara, a neighborhood known for upscale homes and premium kitchens, called Krupo Appliance Repair when their Sub-Zero 650 built-in refrigerator started warming up and was not cooling. Upon inspection, we observed the frost buildup on the back wall of the refrigerator compartment, which strongly indicated a Freon leak in the evaporator coil. To confirm our suspicion, the tech connected a gauge set to the compressor to measure the pressure. The compressor appeared to be functioning properly, but the system contained no refrigerant.

Based on the findings during the inspection, we provided the customer with the written repair quote. The repair estimate included replacing the evaporator coil and recharging the sealed system with Freon. The customer approved the repair so we could proceed with the service.

Here’s a breakdown that outlines our certified technician’s in-home visit, diagnosis, and evaporator coil replacement—proving why Krupo remains a top-rated Sub-Zero Refrigerator repair company in Santa Barbara and Los Angeles.

About the Author:

This article is written by the certified Sub-Zero specialists at Krupo Appliance Repair, a trusted name in high-end appliance repair across Santa Barbara and West Los Angeles. We have over 30 years of combined experience and are licensed (License # A48119) and verified by California’s Bureau of Household Goods & Services.

Key Takeaways:

• Case study of Krupo Appliance Repair replacing a failed evaporator in a Sub-Zero 650 refrigerator in Santa Barbara.
• Step-by-step process of diagnostics, disassembly, and OEM part installation.
• Signs of evaporator failure and tips to prevent future issues.

The Service Call: Sub-Zero 650 Evaporator Issue in Santa Barbara

• Client Location: Santa Barbara, Los Angeles County, CA
• Appliance Model: Sub-Zero 650 (Built-in Refrigerator/Bottom Freezer Combo)
• Problem: Fridge compartment not cooling/warm, excessive frost on back wall, water/ice pooling beneath drawers.

Need help in your area? Book Sub-Zero Refrigerator Repair Appointment now by calling 805-410-1132 to:

Step 1: Diagnosis of Sub-Zero Evaporator Failure

Our certified technician began the evaluation with:

• Visual inspection for ice buildup in the fridge compartment
• Temperature logging with digital thermometer
• Pressure testing and dye tracing for refrigerant leak detection
• Continuity test on the defrost heater

Findings: A pinhole refrigerant leak in the evaporator coil, causing partial cooling and excess moisture.

Step 2: Disassembly and Component Access

After confirming the failure, we:

1. Removed top grille, shelves, drawers, and rear panel of the refrigerator compartment
2. Safely evacuated refrigerant using EPA-compliant equipment
3. Disconnected electrical and refrigerant lines from the evaporator
4. Extracted the failed evaporator coil

Step 3: Installing New OEM Evaporator Coil

• Cut out faulty evaporator coil
• Installed a factory-certified Sub-Zero 650 evaporator coil
• Brazed refrigerant connections using nitrogen purge
• Replaced filter-drier to enhance Freon filtration and ensure moisture-free refrigerant line
• Vacuumed the condenser coil and cleaned the drain line as part of routine maintenance
• Recharged the sealed system to manufacturer specs, this is crucial new evaporators often require different Freaon charge compared to older models
• Conducted final leak test by running the system for 15-25 minutes and monitoring the pressure with gauge and confirmed frost pattern

Parts Used:

• Sub-Zero OEM Evaporator Coil (650 Series)
• 820151 Filter-Drier
• R134a Refrigerant

Outcome: Fully Functional Sub-Zero 650 Refrigerator

After system restart and 25-minute observation:

• Interior temperature stabilized at 37°F
• Frost formed evenly across the new evaporator
• No refrigerant leaks detected
• Client reported food was staying fresh again within 3 hours

Customer Testimonial:

“Vlad is always available when ever we call. His prices are very reasonable and we have always been more than satisfied with his work. Highly recommend!” — Desiree K, Santa Barbara

See the results for yourself! Review all our 5-Star Reviews in Santa Barbara.

Pro Tips from Our Sub-Zero Tech

• Clean condenser coils twice a year
• Don’t ignore frost behind the crisper drawers—it’s often a sign of evaporator issues
• Schedule annual Sub-Zero maintenance in warmer LA areas like Santa Barbara

Conclusion

Sub-Zero refrigerators are built to last, but when parts like evaporators fail, you need expert, localized Santa Barbara Sub-Zero Repair service. If your Sub-Zero 650 isn’t cooling properly, contact Krupo Appliance Repair for professional diagnostics and long-lasting solutions.

Learn more about our Sub-Zero Appliance Repair service
We offer a range of repair services in Santa Barbara

FAQs:

How much does evaporator replacement cost in Santa Barbara?
Prices range from $980–$1,500+, depending on parts, refrigerant type, and model. We provide a detailed quote after diagnosing the issue.

Is it safe to use my Sub-Zero if it’s frosting heavily?
No. Continued use can damage the sealed system. Turn it off and call a certified Sub-Zero technician.

Do you service the full San Fernando Valley and West LA?
Yes—Krupo Appliance Repair proudly serves Santa Barbara, Isla Vista, Calabasas, Hidden Hills, and Sherman Oaks.

What are the signs I need Sub-Zero 650 evaporator repair?
Watch for frost buildup, poor cooling, frequent compressor cycling, and pooling water under the fridge. These are common signs of evaporator failure.

How long does it take to replace a Sub-Zero 650 evaporator coil?
The repair typically takes 3–4 hours, including refrigerant recovery, coil installation, and system testing.

Can you service built-in Sub-Zero refrigerators in West LA homes?
Absolutely. Our certified technicians are trained for in-home service of built-in and integrated Sub-Zero models across Brentwood, Santa Monica, Pacific Palisades, and Beverly Hills.

Is Sub-Zero coil repair covered under warranty?
If your unit is still under factory warranty or covered by an extended service plan, parts and labor may be partially or fully covered. We can help verify coverage.

What causes Sub-Zero freezer leaks?
Leaks are often caused by evaporator ice buildup, failed gaskets, or clogged defrost drains. We provide on-site diagnosis and solutions in Santa Barbara and surrounds.

How can I extend the life of my Sub-Zero 650 evaporator?
Schedule annual maintenance, clean the condenser coils every 6 months, and have your sealed system checked for pressure balance and refrigerant levels.
