Quick Overview:
- Appliance: Sub-Zero 690 Built-In Refrigerator
- Location: Westlake Village, CA

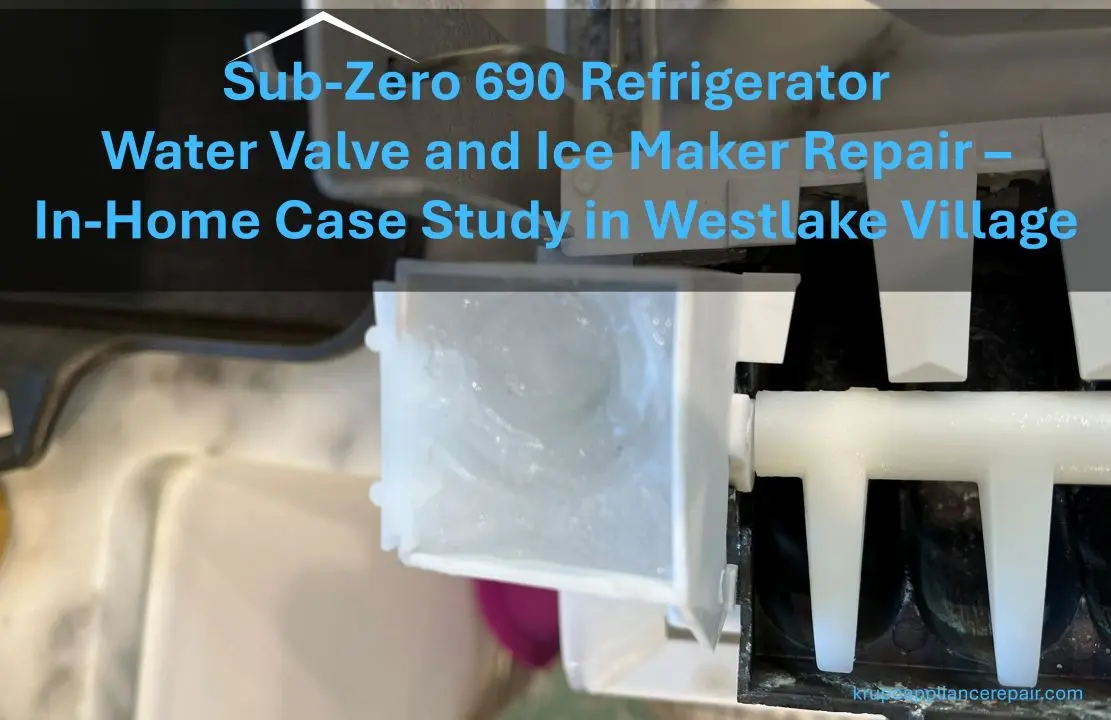

- Issue: Ice maker stopped working and water leaked from the top of the refrigerator
- Diagnosis: Faulty ice maker water controller, frozen fill tube, and broken water supply pipe
- Repair Performed: Water controller replacement, frozen tube defrosting, water system testing, and full reassembly
- Outcome: Ice maker operation restored, water leak stopped, and water flow normalized
- Technician Insight: A weak or failing water controller can reduce water flow, freeze the fill tube, and eventually crack the supply line inside a Sub-Zero refrigerator
Introduction
A homeowner Fran S. in Westlake Village contacted us because their Sub-Zero 690 ice maker stopped working, and water was leaking from the top section of the refrigerator. At first, Fran S. thought the leak was minor. However, the leak became more frequent, and ice production stopped completely. After a full inspection, our technician Vlad F. found a failed water controller and a frozen ice maker water tube. As a result, expanding ice pressure cracked the supply pipe and disrupted water delivery. Therefore, we replaced the faulty water controller, cleared the frozen line, and restored normal flow. This repair solved both the leak and the ice maker failure in one service visit.
Reported Issue: Sub-Zero 690Refrigerator Ice Maker Stopped Working
A customer Fran S. in Westlake Village reported two clear problems with their Sub-Zero 690 refrigerator:
- The ice maker had stopped making ice
- Water was leaking from the top of the refrigerator
Initially, the issue seemed unrelated. However, both symptoms came from the same hidden failure inside the water delivery system.
This is a common question homeowners in Westlake Village ask Krupo techs:
“Why did my Sub-Zero 690 ice maker stop working and start leaking water?”
In many cases, a failing water controller is the cause.
Because Sub-Zero built-in refrigerators rely on steady water flow, even a small drop in pressure can lead to freezing inside the fill tube.
Then, pressure builds.
Finally, pipes crack or leak.
Need help in your area? Book Sub-Zero Refrigerator Repair Appointment now by calling 310-349-3961 to:
Diagnosing Faulty Ice Maker Water Controller
Our technician Vlad F arrived at the Westlake Village estate to perform a thorough inspection. We started by checking the ice maker area and the water supply lines. During this process, we detected that the water controller was not closing properly. This fault caused water to freeze solid inside the fill tube. Consequently, the ice build-up created extreme backpressure, which caused the water supply pipe to break. This breakage was the direct reason why water was leaking from the top of the refrigerator.
During a full system inspection, three problems were found:
- Faulty ice maker water controller
- Frozen water inside the fill tube
- Broken water supply pipe caused by ice expansion
Krupo techs get asked this question a lot: “Can frozen water lines break inside a Sub-Zero refrigerator?”
The answer is: Yes. They can.
When water flow slows, standing water freezes. Then frozen water expands. Over time, pressure can split fittings or crack internal lines.
That is exactly what happened in this Westlake Village Sub-Zero 690 repair.
Step-by-Step Repair Solution: Water Controller Replacement
To fix these Sub-Zero 690 ice maker problems, we performed a comprehensive structured technical repair. To restore a full operation, our team followed these specific steps:
1. Component Access & Removal
- First, we removed:
- Bottom kick plate
- Freezer light assembly
- Upper compressor cover
- Ice maker assembly
This gave full access to the water controller and supply line.
2. Water Controller Replacement
Next, we removed the defective ice maker controller assembly to inspect the fill tube and surrounding components.
Then we installed a new genuine OEM Sub-Zero water controller, connected the harness, and secured the water housing.
This restored proper valve function.
3. Frozen Tube Defrosting
After that, we carefully defrosted the ice from the frozen fill tube.
Then we removed all remaining ice buildup and replaced the broken water supply pipe.
This step was critical because trapped ice would quickly recreate the blockage.
4. Functional Testing
Next, we bypassed the ice maker cycle to test water delivery.
Water flow returned immediately.
Pressure normalized.
No leaks were detected.
5. Reassembly
Finally, all components were reinstalled:
- Freezer light assembly
- Bottom kick plate
- Upper compressor cover
Then a full operating cycle was tested.
Everything worked correctly.
Final Result & Performance Verification
After completing the repair, we bypassed the ice maker to test the new water controller immediately. The water flowed through the new supply pipe without any leaks. Furthermore, the ice maker cycled perfectly, and the leaking from the top of the fridge stopped completely. The homeowners in Westlake Village were pleased that their luxury refrigerator was back in peak condition.
Final Test Results:
- Ice maker filled normally
- Ice production resumed
- Water leak stopped
- Flow pressure stabilized
- No freezing remained inside the tube
- Refrigerator performed to factory standard
The homeowner immediately noticed normal operation return.
Most importantly, both symptoms were solved at the root cause.
Customer Testimonial
” I was very happy with service from Sub-Zero Repairs Calabasas. Vlad was able to come the next day and fixed my ice maker in a very short time. I would definitely call them again!!”
— Fran S., Westlake Village Resident (Yelp Review)
Technician Insight
In Westlake Village and the surrounding Conejo Valley, we often see Sub-Zero water lines freeze due to aging valves. When a valve “weeps,” it allows a tiny amount of water to enter the tube and freeze. This ice plug eventually blocks the line, and the resulting pressure can cause a broken water supply pipe.
This is a known issue in older Sub-Zero built-in refrigerators.
Homeowners in Santa Barbara and Ventura Counties as well as West Los Angeles often ask: “What causes a Sub-Zero ice maker water line to freeze?”
Common causes include:
- Weak water controller
- Low water flow
- Mineral buildup
- Old valve components
- Irregular pressure cycles
When flow becomes weak, water sits too long in the tube. Then it freezes. Next, expansion creates damage. Finally, leaks begin.
The best prevention:
- Replace water filters on schedule
- Investigate slow ice production early
- Address leaks quickly
- Have water valves inspected during maintenance
This prevents larger repairs later.
Krupo Maintenance Tip: If you notice your ice cubes are getting smaller, your fill tube might be partially frozen. Fixing this early can prevent an expensive leak later. Always use an expert for Sub-Zero built-in refrigerator repair to ensure OEM parts are used.
Similar Repairs Near You
Related services homeowners often request:
- Sub-Zero refrigerator repair Westlake Village
- Sub-Zero ice maker repair Westlake Village
- Sub-Zero 611 refrigerator clogged Drain Line Repair
When Westlake Village Homeowners Should Call for Service
Call for professional repair if:
- Ice maker stops producing ice
- Water leaks from inside the refrigerator
- Ice production becomes slow
- Ice cubes become hollow or small
- You hear water fill sounds but no ice forms
- Freezer temperature stays normal but ice maker fails
Early repair prevents pipe damage and internal leaks. Contact Krupo Appliance Repair today for a professional Sub-Zero diagnostic in Santa Barbara, Ventura and Los Angeles Counties.
Need Sub-Zero Refrigerator Repair in Westlake Village Today?
Certified technicians serving Santa Barbara & West LA. OEM parts, precise diagnostics, and a 12-month labor warranty. Make a quick call at 310-349-3961 to speak with our team to arrange refrigerator inspection appointment:
FAQs
Most often, a failing water controller or frozen fill tube blocks water flow to the ice maker.
A frozen water tube can crack the supply line, causing water to leak inside the refrigerator.
Yes. If the valve does not open correctly, the ice maker will not receive enough water.
Low flow, weak valves, mineral buildup, and pressure issues are common causes.
Yes. Ice expands and can crack pipes, fittings, or supply lines.
Repairs typically range from $350–$900, depending on labor, access, and parts required. However, replacing a valve is much cheaper than repairing water damage to your floors and cabinets.
Yes. Sub-Zero refrigerators are premium built-in appliances, and repair is usually far more cost-effective than replacement.
Most water controller repairs can be completed in one service visit.
Krupo Appliance Repair provides specialized in-home Sub-Zero service throughout Westlake Village North Ranch, Lake Sherwood, and surrounding luxury communities.
Yes. We only use genuine Sub-Zero parts to ensure your luxury appliance operates according to factory standards and remains reliable.
Reduced flow from a failing valve often slows ice production before full failure happens.
This leak often occurs because a frozen ice maker tube causes the supply pipe to burst under pressure. Water then escapes from the top compressor area.
If leaking is active, protect flooring and schedule service quickly. If electrical components are affected, power should be disconnected safely until repair.
About the Author
Vlad F. is a factory-trained luxury appliance technician with over 10 years of experience specializing in Sub-Zero, Wolf, Viking, and Monogram repair. He holds a university engineering degree and has completed extensive fieldwork in California and overseas. Based in Calabasas, Vlad serves homeowners across West Los Angeles, Santa Barbara, and Ventura County through Krupo Appliance Repair (CA License #A48119)
